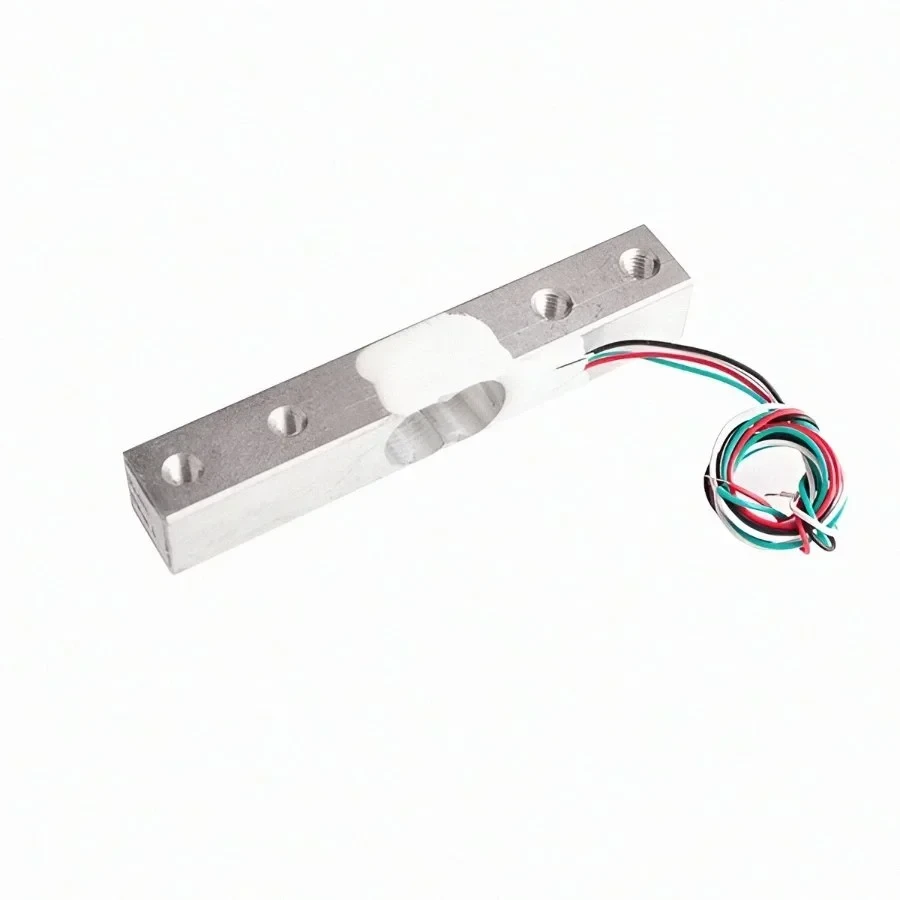

1KG Load Cell

The 1kg Load Cell is a high-precision weight sensor designed to measure loads up to 1 kilogram with excellent accuracy and stability. It works on strain gauge technology, making it ideal for digital weighing scales, Arduino projects, smart measurement systems, and IoT applications.

This load cell converts mechanical force into an electrical signal, which can be easily amplified using modules like HX711 for precise weight measurement. Its compact design and reliable performance make it a popular choice for students, engineers, and electronics hobbyists in Bangladesh.

Whether you’re building a DIY digital scale, industrial measurement system, or research prototype, this 1kg load cell sensor delivers consistent and accurate results.

Specifications:

• Product Type: Load Cell / Weight Sensor

• Maximum Capacity: 1kg

• Technology: Strain Gauge Based

• Rated Output: 1.0 ± 0.15 mV/V

• Input Resistance: 405 ± 10Ω

• Output Resistance: 350 ± 3Ω

• Excitation Voltage: 5V – 10V DC

• Accuracy: High precision, low creep

• Material: Aluminum Alloy

• Operating Temperature: -20°C to +65°C

• Compatibility: Arduino, ESP32, Raspberry Pi (with HX711)

Features:

• ✔ High accuracy for small weight measurement

• ✔ Stable and repeatable output

• ✔ Lightweight & compact design

• ✔ Ideal for Arduino & IoT projects

• ✔ Long-lasting aluminum construction

• ✔ Perfect for educational & commercial use

Applications:

• Digital weighing machines

• Smart kitchen scales

• Arduino & robotics projects

• IoT weight monitoring systems

• Industrial automation prototypes

• Research & laboratory equipment
