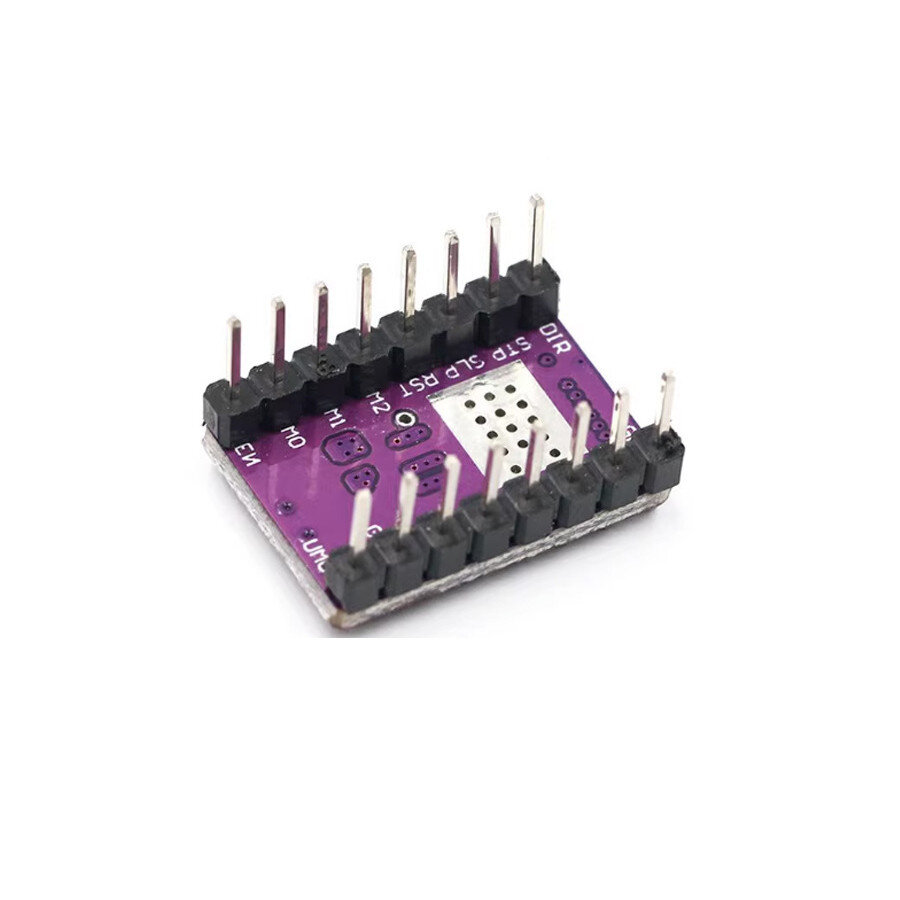

DRV8825 Stepper Motor Driver Module for Arduino, CNC & 3D Printer
The DRV8825 Stepper Motor Driver Module is a high-performance motor driver designed for precise control of stepper motors in advanced electronics projects. Widely used by Bangladeshi students, engineers, and robotics enthusiasts, this module is perfect for applications like CNC machines, 3D printers, robotics automation, and DIY embedded systems.
Powered by the reliable Texas Instruments DRV8825 driver IC, this module supports high current output up to 2.2A (with cooling) and offers microstepping up to 1/32 step resolution, ensuring smooth and accurate motor motion.
Whether you're building a university project, industrial prototype, or hobby project, the DRV8825 provides stable performance, easy interfacing with Arduino and other microcontrollers, and efficient thermal handling.
Features:
- Supports up to 2.2A current per coil (with heatsink)
- Wide voltage range: 8.2V to 45V
- Microstepping: Full, 1/2, 1/4, 1/8, 1/16, 1/32
- Built-in overcurrent & thermal protection
- Compatible with Arduino, Raspberry Pi, CNC shields
- Drop-in replacement for A4988 driver module
- Ideal for 3D printers, CNC machines, robotics
Specifications:
| Specification | Details |
|---|---|
| Driver IC | DRV8825 |
| Motor Voltage | 8.2V – 45V |
| Current Output | Up to 2.2A (with cooling) |
| Microstepping | Up to 1/32 step |
| Logic Voltage | 3.3V / 5V compatible |
| Interface | Step & Direction |
| Protection | Overcurrent, thermal shutdown |
| Dimensions | Approx. 20mm x 15mm |
Use Cases:
- Arduino-based robotics projects
- CNC machine control systems
- 3D printer motor control
- Automated industrial systems
- DIY electronics & university projects in Bangladesh
