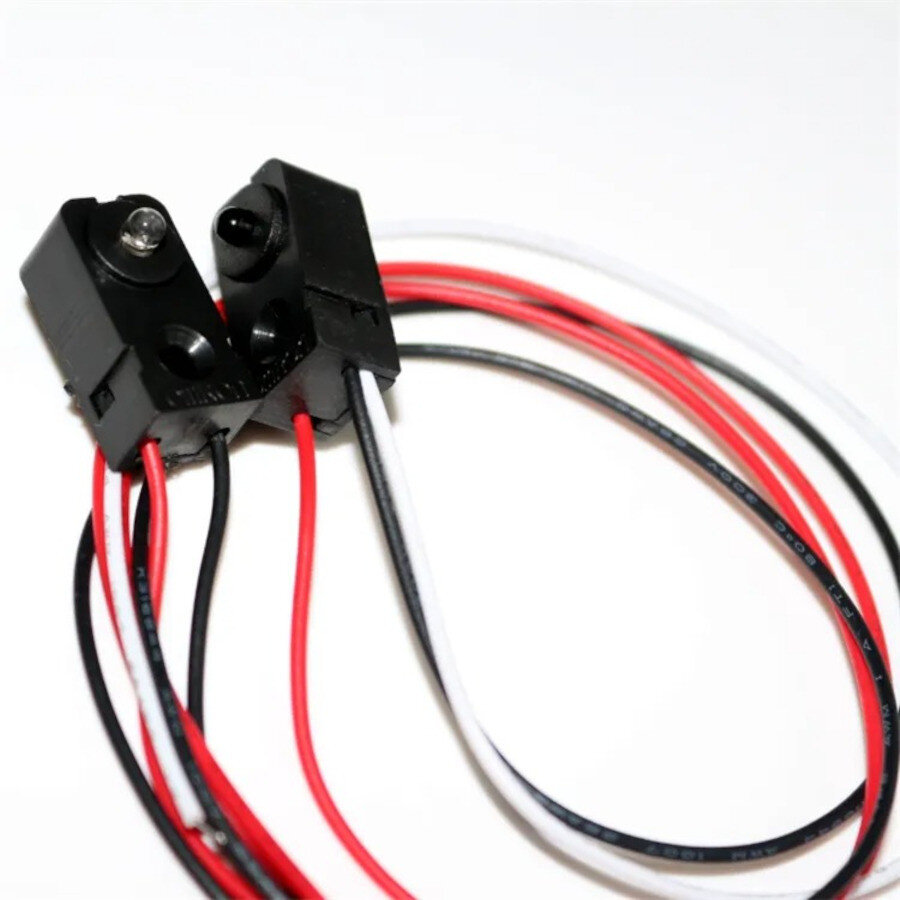

0-50cm F3 Infrared Tube Photoelectric Switch Sensor.

Technical Parameters:

1. Sensing distance: F3:25cm/50cm/80cm F5:30cm/50cm/1M

2. Induction method: on the type of shot (non-transparent)

3. Working voltage: DC 4.5~5V

4. Working current: 10MA

5. Output mode: 0V or 5VNPN/PNP normally open (normally closed to be customized)

6. Output current: 100mA (can directly drive the relay)

7. Launch angle: straight line (infrared light)

8. Receiving angle: <10 degrees

9. Response time: 2ms

10. Working temperature: -25 degrees 60 degrees

11. Working environment: indoor (not waterproof)

12. Dimensions: Length 20mm Width 10mm height 8mm

13. Line length: 25cm with 2.254 Connector(Customizable)

Launch: Red line = 5VCC / black line = GND

Receive: Red line = 5VCC / White line = OUT (NPN) / black line = GND
