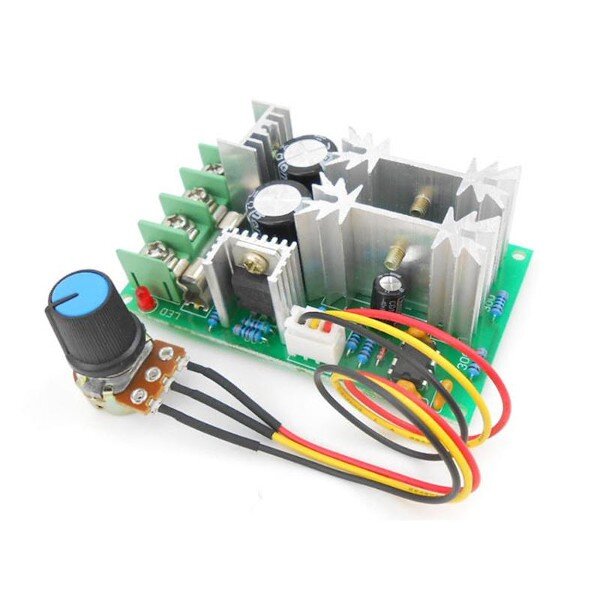

DC Motor PWM Speed Controller 10-60V 20A
Control the speed of a DC motor with this controller. High efficiency, high torque, low heat generating. With reverse polarity protection, high current protection. This engine speed control switch can control the engine speed from 0%-100%. It is widely used in industrial production. Comes with a button to control the speed of the motor. Easy to handle!
SPECIFICATIONS
- Working Voltage: DC 10V - 60V
- Control Power: 0.01-1200W
- Static Current: 0.010A (Standby)
- Rated Current: 15A
- Max.Current: 20A
- PWM Duty Cycle: 0% -100%
- PWM Frequency: 25 KHz
- Control Voltage: 0-5V
- Potentiometer kind: Single turn
- Resistance: 10kΩ
- Power: 125mW
- Mounting: On cable
- Characteristics: Linear
- Body material: Metal
- Mechanical rotation angle: 300°
- Material: Plastic, metal
- Module Size: 77x45x29mm
NOTES
- Must be connected to the load to adjust the speed.
- With the protection of the reverse connection of the power supply, protection against overvoltage, ceramic fuse of Fast Fusion 20A.
- It can be controlled directly with PLC voltage.
- The potentiometer and terminals may differ in color and material.
- The choice is random. Thanks for understanding.
