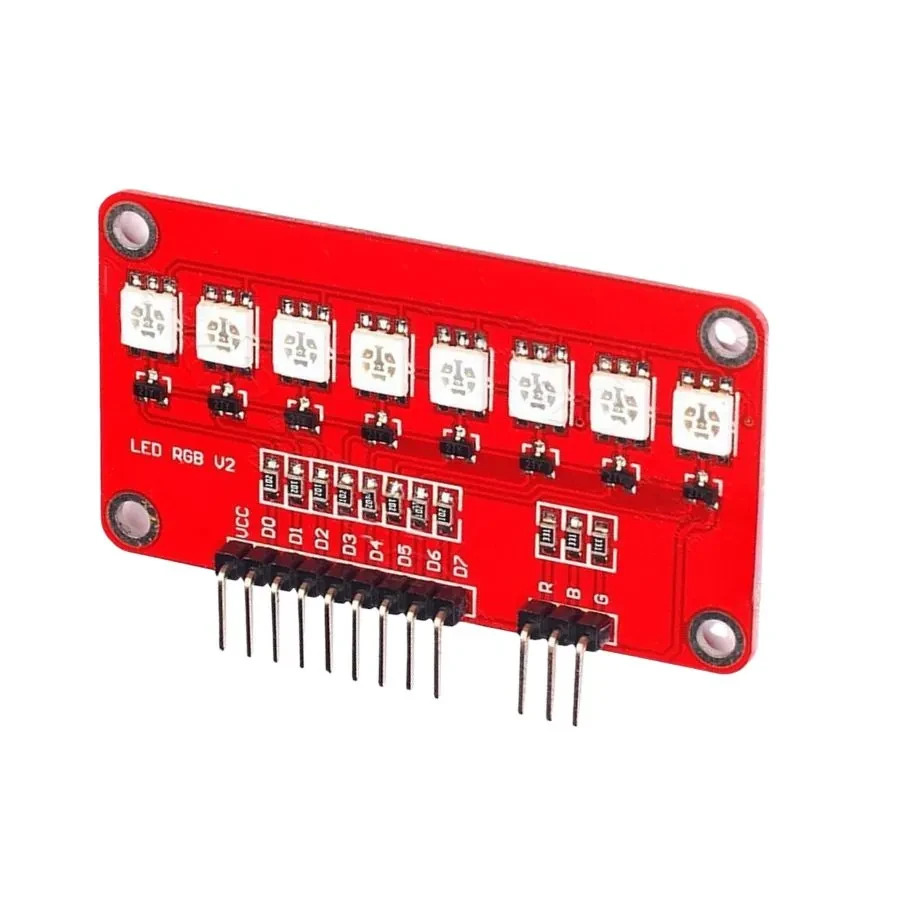

The 5050 LED RGB V2 Light Water module for Arduino is a waterproof full-color LED module using high-quality RGB 5050 SMD LED chips for bright and vivid colors. It operates at 5V DC and is compatible with Arduino and similar platforms such as 51/AVR/ARM. The module includes 8 LEDs controlled individually through pins D0 to D7, and the RGB pins are connected to ground and Arduino pins for Red, Green, and Blue control.

Key technical details:

• Voltage rating: 5V

• Forward Current: 20-30mA per LED

• Operating temperature: -25°C to 85°C

• Size approximately 62mm x 33mm

• Waterproof design with silicone sealant for both indoor and outdoor use

• Uses PWM for adjustable color mixing of red, green, and blue

Typical connection:

• Vcc to Arduino 5V

• D0 to D7 pins to Arduino digital pins 2 to 9

• RGB pins connected to Arduino pins 10 to 12 (with GND common)

This module is widely used for creating colorful lighting effects with Arduino and offers reliable performance for hobby and professional projects focused on RGB LED control with a waterproof form factor.
