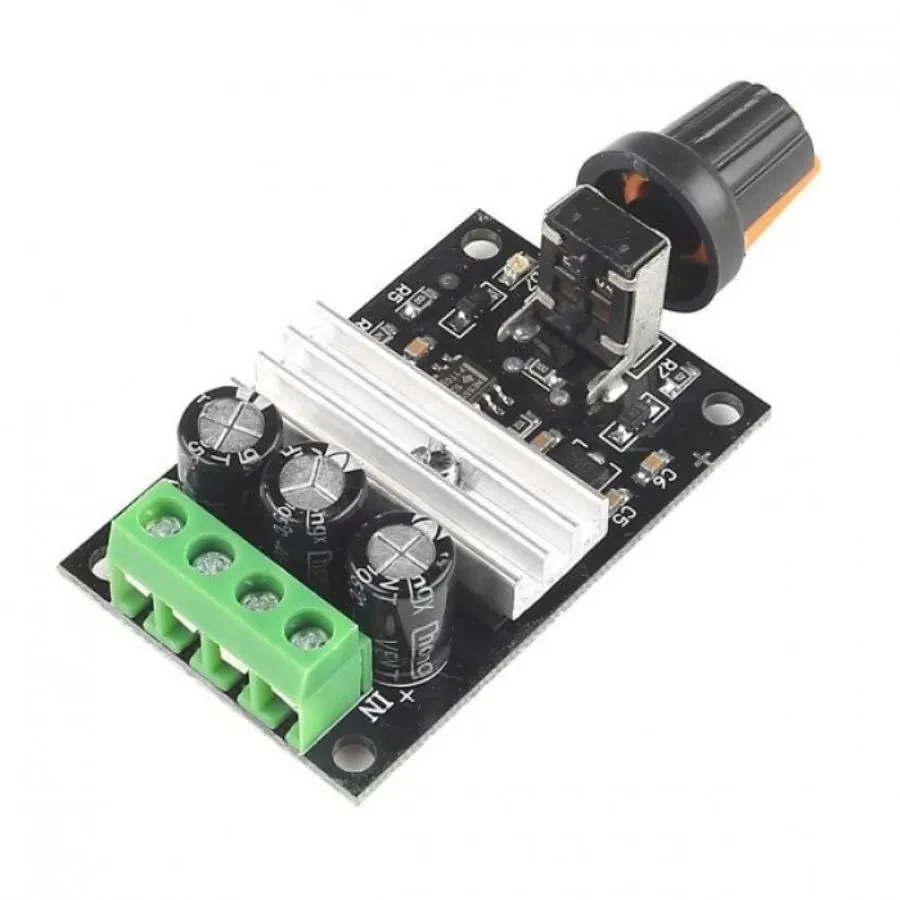

DC Motor Speed Controller allows controlling both the speed and direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%. The motor speed controller incorporates a high power MOSFET with a heat sink and can easily provide a continuous current of 3A to your DC motor or other DC load.

Can be easily interfaced control PWM with Microcontrollers, Arduino Boards, Raspberry Pi etc

Features:

• Adjustable speed with potentiometer or PWM signal input
• Wide range control uses PWM to vary the speed of DC motors.
• Terminal strip for power & Motor connections.
• Power-On LED indicator

Specification:

• Working Voltage: DC 6V - 28V
• Max. continuous current output: 3A
• Max. Power: 80W
• PWM pulse width modulation range: 5% -95%
• Size: 32 x 50 x 15mm
• Net Weight: 18g

WARNING: Do not reverse postive and negative power loads, this will damage the controller.
