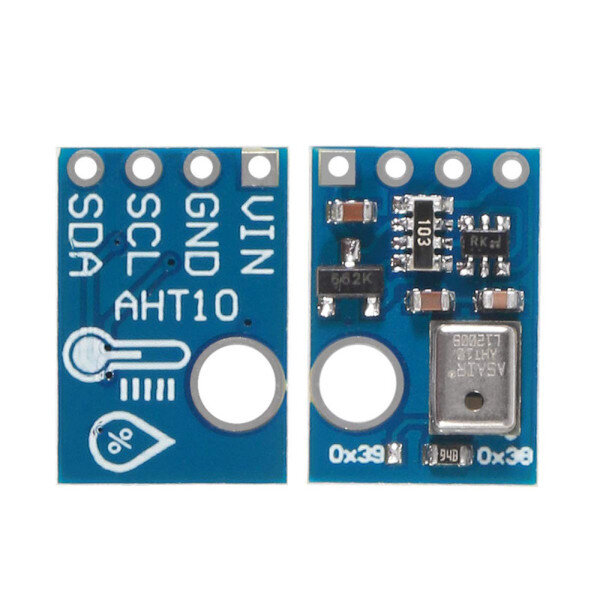

The AHT10, a new generation of temperature and humidity sensors, sets new standards in size and intelligence: it is embedded in a dual-row flat no-lead SMD package suitable for reflow soldering, with a bottom surface of 4 x 5mm and a height of 1.6mm. The sensor outputs a calibrated digital signal in standard I 2 C format. Equipped with a newly designed ASIC-specific chip, an improved MEMS semiconductor capacitive humidity sensing element, and a standard on-chip temperature sensing element, the performance of the AHT10 has been greatly improved or even exceeded the reliability level of previous generation sensors. A generation of temperature and humidity sensors, improved to make its performance more stable in harsh environments.

Specificatoins:

• Module size: 16*11 mm
• Interface type: I 2 C
• Operating voltage: 1.8 - 6.0 V
• Interface size: 4*2.54mm pitch
• Humidity Accuracy: Typical ±2%
• Humidity resolution: 0.024%
• Temperature accuracy: typical ±0.3℃
• Temperature resolution: typical 0.01℃
• Working temperature: -40℃--85℃
