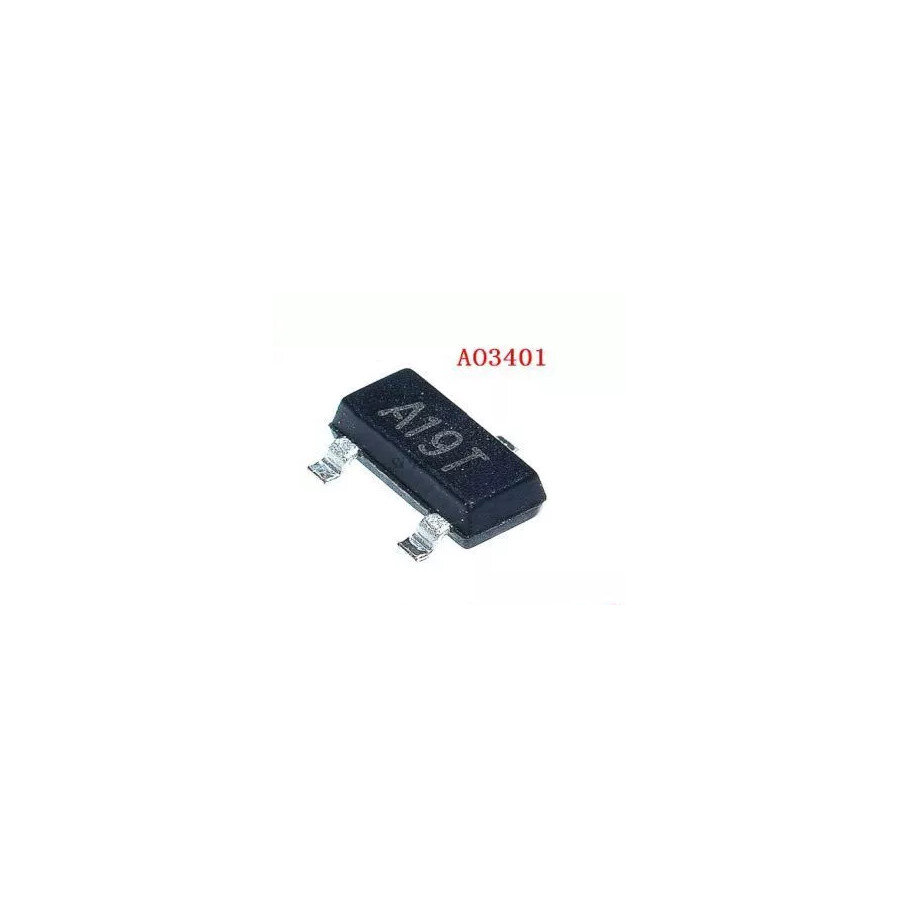

AO3401 SOT-23 4A P-Channel MOSFET
(0
reviews)
Inhouse product
Price
৳15.00
/1
Share
Top Selling Products
-
৳320.00
Reviews & Ratings
0.00
out of 5.0
(0
reviews)
There have been no reviews for this product yet.
The AO3401 is a P-Channel MOSFET designed for efficient switching and power management in various electronic applications. Encased in a compact SOT-23 package, it is well-suited for space-constrained designs.
Key Specifications:
- Drain-Source Voltage (V<sub>DS</sub>): -30V
- Continuous Drain Current (I<sub>D</sub>): -4A at 25°C
- Gate-Source Voltage (V<sub>GS</sub>): ±12V
- On-Resistance (R<sub>DS(on)</sub>):
- < 50mΩ at V<sub>GS</sub> = -10V
- < 60mΩ at V<sub>GS</sub> = -4.5V
- < 85mΩ at V<sub>GS</sub> = -2.5V
- Total Gate Charge (Q<sub>g</sub>): 14 nC at V<sub>GS</sub> = -10V
- Operating Junction Temperature Range (T<sub>J</sub>): -55°C to +150°C
These characteristics make the AO3401 suitable for applications such as load switching, DC-DC converters, and power management in portable devices. Its low on-resistance ensures minimal power loss, enhancing overall efficiency.
