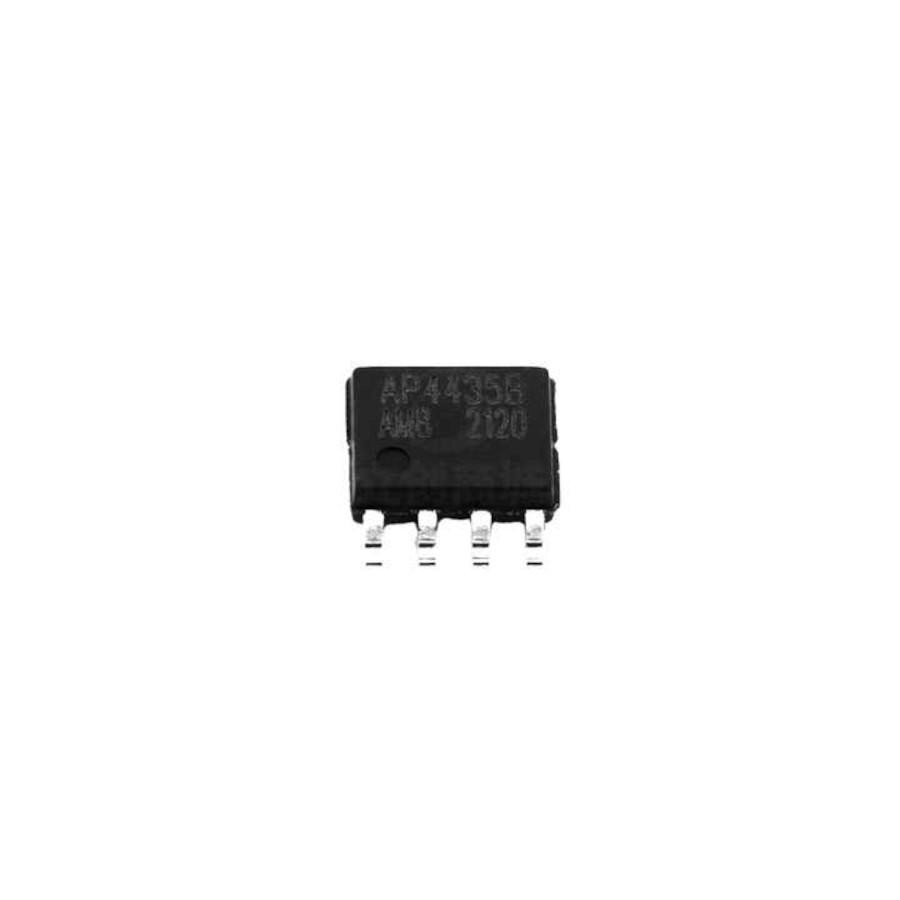

The AP4435B is a P-channel MOSFET designed for power management applications. It is commonly used in DC-DC converters, battery management systems, and general-purpose switching circuits. The device is housed in an SOP-8L package, making it suitable for compact designs.

Key Specifications

Features

1. Low On-Resistance: Ensures low conduction losses for improved efficiency.
2. High Current Handling: Capable of handling up to 9.3A.
3. Logic-Level Gate Drive: Can be driven directly by logic-level signals (e.g., 3.3V or 5V).
4. Thermal Stability: Suitable for high-temperature environments.
5. Compact Package: SOP-8L for space-saving designs.

Applications

• DC-DC Converters: Used as a switching element.
• Battery Management: Ideal for battery charging and discharging control.
• Load Switching: Controls high-current loads with low gate drive voltage.
• Reverse Polarity Protection: Protects circuits from incorrect power connections.
• Motor Control: Drives small motors or actuators in low-voltage applications.

Pin Configuration (SOP-8L)

Typical Usage

The AP4435B is commonly used in low-side switching configurations in power circuits. Being a P-channel MOSFET, it is ideal for high-side switching when the source is connected to a positive voltage.

Example Circuit

High-Side Switch with AP4435B and Microcontroller:

• Connect the source to the positive supply voltage (+V).
• Connect the drain to the load.
• Connect the gate to a GPIO pin of the microcontroller through a resistor (e.g., 10kΩ).
• Use a pull-up resistor (e.g., 100kΩ) to keep the MOSFET off by default.

When the GPIO pin drives the gate low, the MOSFET turns on, supplying power to the load.

Design Considerations

1. Gate Drive Voltage:
   • Ensure the gate voltage is sufficiently negative relative to the source for full enhancement.
   • For logic-level operation, confirm compatibility with the microcontroller's output voltage.
2. Thermal Management:
   • Add appropriate heat sinking or thermal vias to the PCB to dissipate heat during high-current operation.
3. Voltage Ratings:
   • Do not exceed the -30V V_DS rating to avoid damage.
4. Current Ratings:
   • Limit the current to below -9.3A to ensure safe operation.
