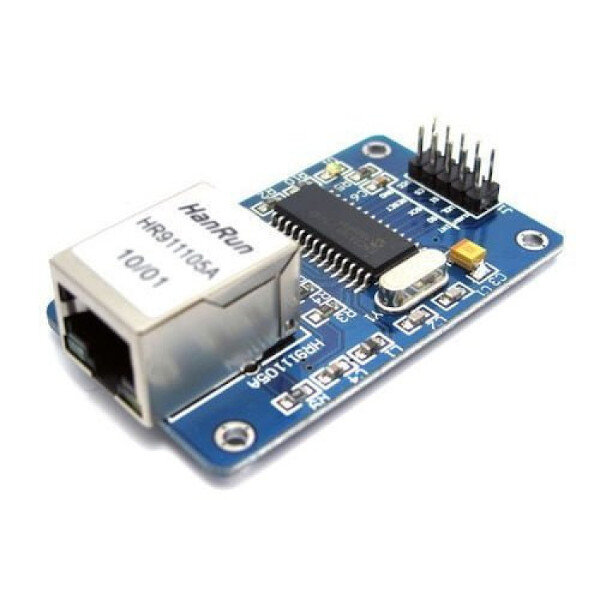

ENC28J60 Ethernet Network Board Module

The ENC28J60 Ethernet Module uses the Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of the network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 20MHz.

Features

ENC28J60 Ethernet chips, SOP28 package

SPI Interface

1x10 connector, can be easily mounted with the MCU

Built-in isolation transformer RJ45 connectors HR911102A

Power LED

Single Supply: +3.3 V

25Mhz Crystal

PCB size: 55x36 mm

Documentation, Sample Code and Resources

There is plenty of documentation on the internet for this module, just search for "Arduino enc28j60". There is quite a lot of info and sample code on the GEETECH site.

What is included

1 x ENC28J60 Ethernet LAN Network SPI Module
