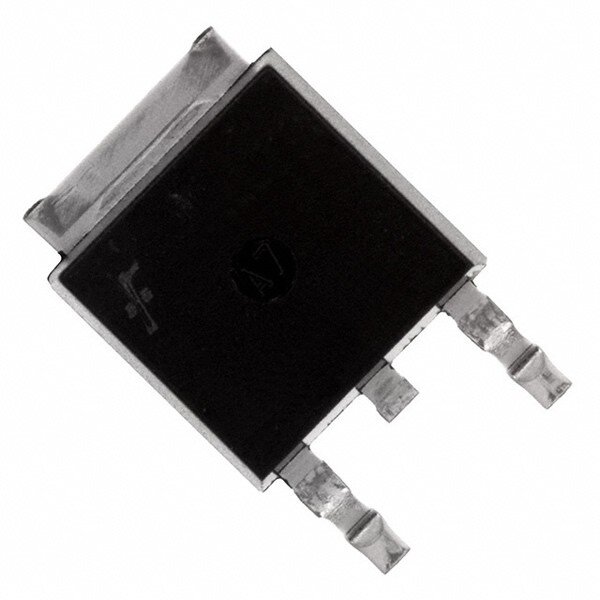

FDD8447L N-Channel MOSFET, 57A, 40V, 3-Pin DPAK
Specifications
| Attribute | Value |
| Channel Type | N |
| Maximum Continuous Drain Current | 57 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | DPAK (TO-252) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 14 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 44 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Length | 6.73mm |
| Width | 6.22mm |
| Maximum Operating Temperature | +150 °C |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 37 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Series | PowerTrench |
| Height | 2.39mm |
