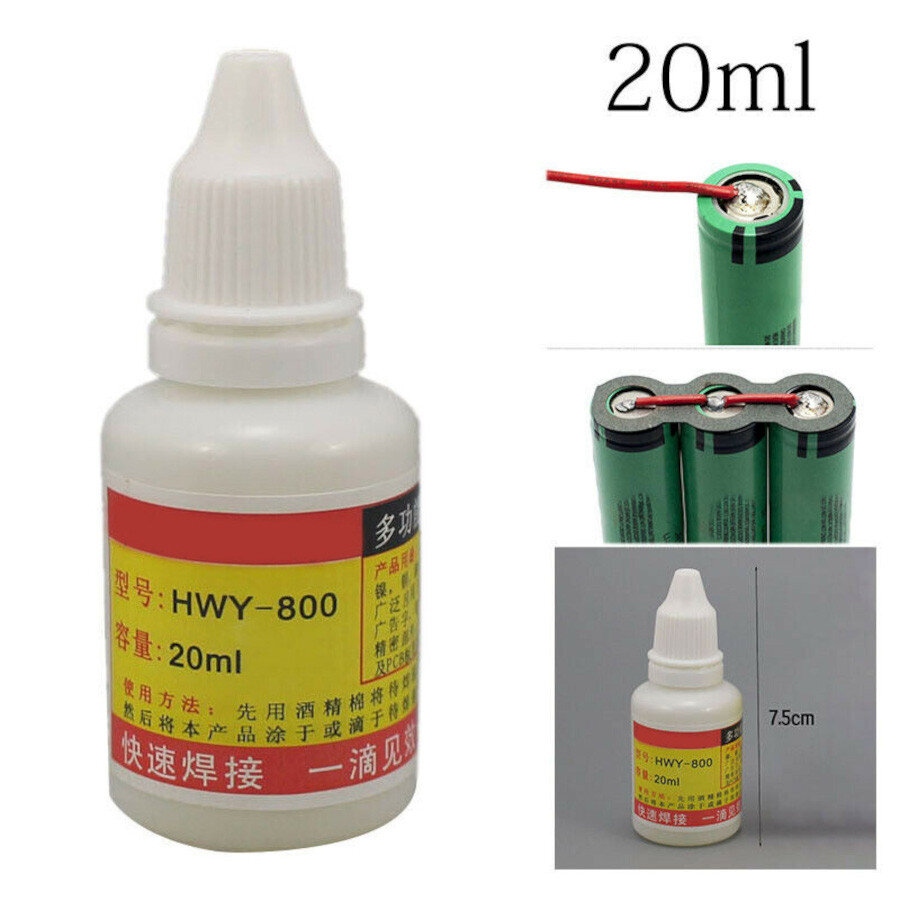

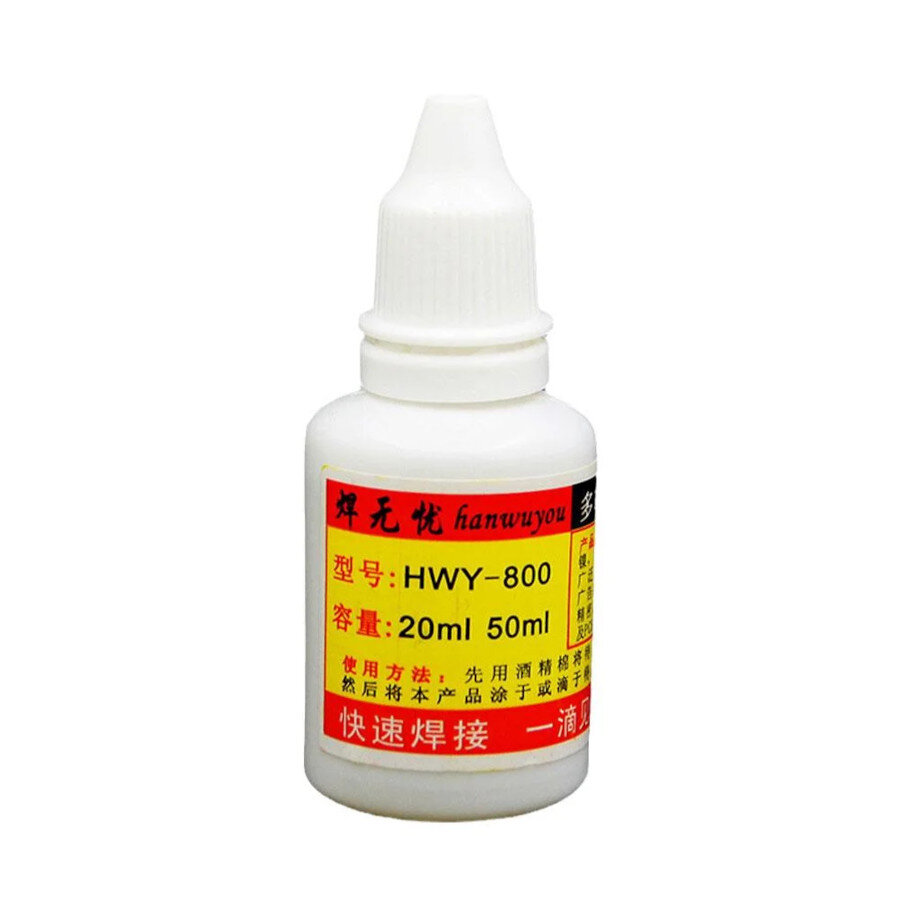

HWY-800 20ml Stainless Steel Liquid Flux Soldering.

The HWY-800 is a brand of liquid flux used in soldering applications. It is commonly used to improve the quality of solder joints by reducing oxidation, ensuring proper wetting, and enhancing the flow of the solder.

Key Features of HWY-800 Liquid Flux:

• Formulation: Typically, HWY-800 is a rosin-based liquid flux that works effectively on a variety of materials, especially in electronics and soldering tasks.
• Application: It is used for soldering wires, PCB components, electronics repair, and other applications where clean and reliable solder joints are required.
• Appearance: It usually comes in a small bottle, such as the 20ml size, which makes it convenient for detailed work.
• Type of Flux: HWY-800 is often classified as a rosin-based flux, which is suitable for electronics assembly and repair, as well as for work with lead-free and lead-based solders.
• Effectiveness: Helps in removing oxides, increasing wetting, and improving solder flow, resulting in cleaner and more reliable solder connections.

Usage Instructions:

1. Clean the Surface: Before applying flux, ensure that the surfaces to be soldered are clean and free of oils or contaminants. Use an isopropyl alcohol wipe or cleaning solution if necessary.

2. Apply Flux: Using a small brush or directly from the bottle, apply a small amount of liquid flux to the area to be soldered. This is especially helpful in fine-pitch SMD (Surface-Mount Devices) or PCB rework.

3. Solder the Joint: Heat the soldering iron to the appropriate temperature (usually around 350°C for lead-based solder and slightly lower for lead-free solder). Once the soldering iron is heated, apply solder to the joint while moving the soldering iron around to melt the solder and ensure good wetting.

4. Clean Up: After soldering, it is essential to clean off any remaining flux residue. This can be done using isopropyl alcohol and a brush to avoid corrosion or damage to the board.

5. Safety: Always use the flux in a well-ventilated area, as some fluxes release fumes when heated. Additionally, wear safety glasses and gloves to avoid contact with the flux, which may cause skin irritation.

Characteristics of Good Liquid Flux:

• Viscosity: Liquid flux should be sufficiently thick to prevent dripping but still flow well over surfaces.
• Activation: It should activate at a relatively low temperature to help improve solder flow.
• Cleanliness: After soldering, the flux residue should be easy to clean off to avoid corrosion.
• Odor: Many fluxes have a mild smell during use, but overly strong or toxic fumes could be a sign of poor-quality flux.
