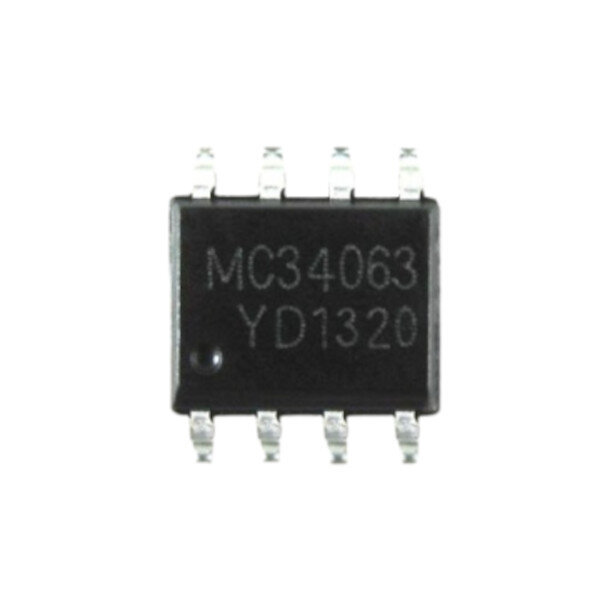

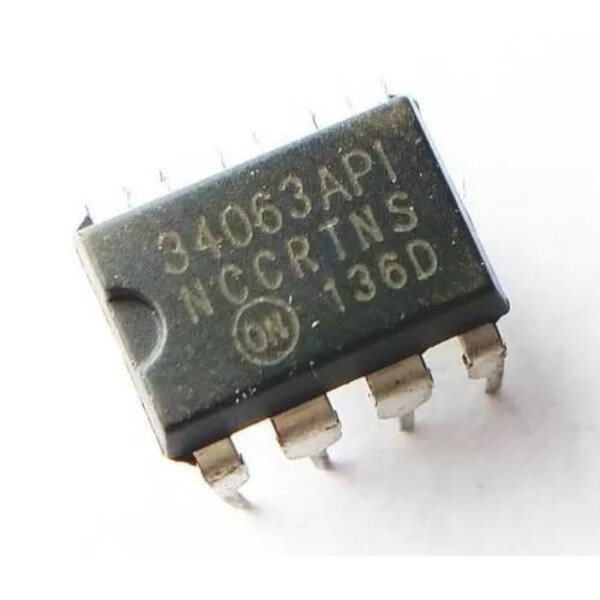

The MC34063A Series is a monolithic control circuit containing the primary functions required for dc-to-dc converters. These Buck Boost Inverting Switching Regulators consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step down (Buck), Step up (Boost) and Voltage-Inverting applications with a minimum number of external components. Refer to Application Notes AN920A/D and AN954/D for additional design information. The MC33063 is an extended temperature version. The NCV33063 is an extended temp version for automotive.

Features:-

1. Operation from 3.0 V to 40 V Input
2. Low Standby Current
3. Current Limiting
4. Output Switch Current to 1.5 A
5. Output Voltage Adjustable
6. Frequency Operation to 100 kHz
7. Precision 2% Reference
8. NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC?Q100 Qualified and PPAP Capable
9. These Devices are Pb?Free, Halogen Free/BFR Free and are RoHS Compliant

Applications:-

1. For Higher Switching Frequency See NCP3063
2. For Dedicated ENABLE Pin and Higher Switching Frequency See NCP3064
3. Fan Controller
4. DC-DC Power Supply
