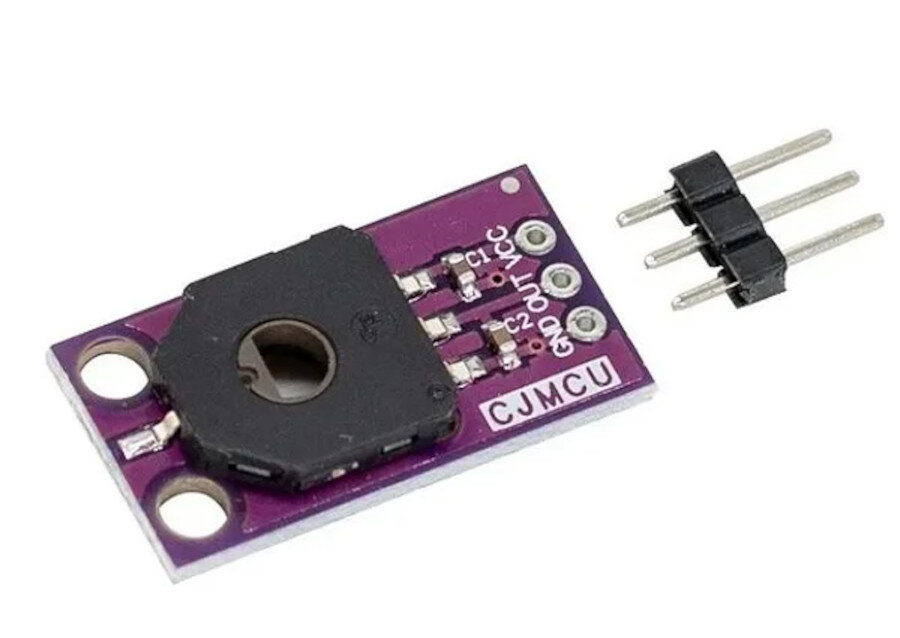

The MCU-103 is a rotation angle sensor designed to measure the angular position of a rotating object, such as a shaft. It operates as a potentiometer, providing an analog voltage output proportional to the rotation angle.

Key Specifications:

• Rotation Angle: 0° to 333.3° (continuous)

• Output: Analog voltage

• Resistance: 10kΩ with a tolerance of ±30%

• Linearity: ±2%

• Mounting Type: Surface Mount Device (SMD)

• Operating Temperature Range: -40°C to 85°C

The sensor features a dustproof design to maintain stable performance and high reliability, achieving up to 1 million cycles.
Its compact and lightweight design makes it suitable for applications requiring precise angle measurements, such as robotic arms, servo motors, and industrial automation systems.
