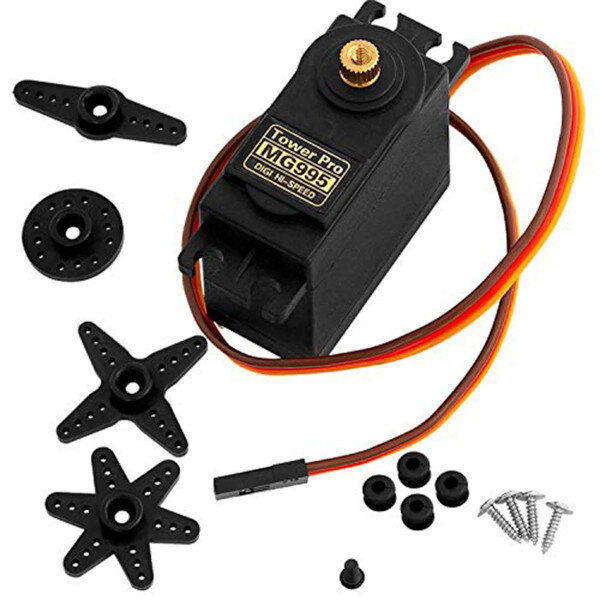

MG995 Metal Gear Servo Motor is a high-speed standard servo can rotate approximately 180 degrees (60 in each direction) used for airplanes, helicopters, RC cars and many RC models. Provides 10kg/cm at 4.8V, and 12kg/cm at 6V.

It is a Digital Servo Motor that receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.

They are packed within a tight sturdy plastic case which makes them water and dust-resistant which is a very useful feature in RC planes, Boats and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.

Specification:

• Weight: 55gm
• Operating Voltage: 4.8 – 7.2 V
• Operating Speed @4.8V : 0.20sec/60°
• Operating Speed @6.6V : 0.16sec/60°
• Stall Torque @4.8V : 10 kg-cm
• Stall Torque @6.6V : 12 kg-cm
• Operating Temperature (°C): -30 to 60
• Dead Band Width: 1 ?s
• Gear Type: Metal
• Rotational Degree: 180
• Servo Plug: JR
• Cable Length: 30 mm
• Length:40.5mm
• Width: 20mm
• Height:44mm

Features:

• The connection cable is thicker.
• Equips high-quality motor.
• High resolution
• Accurate positioning
• Fast control response
• Constant torque throughout the servo travel range
• Excellent holding power

Wire Description

• RED – Positive
• Brown – Negative
• Orange – Signal
