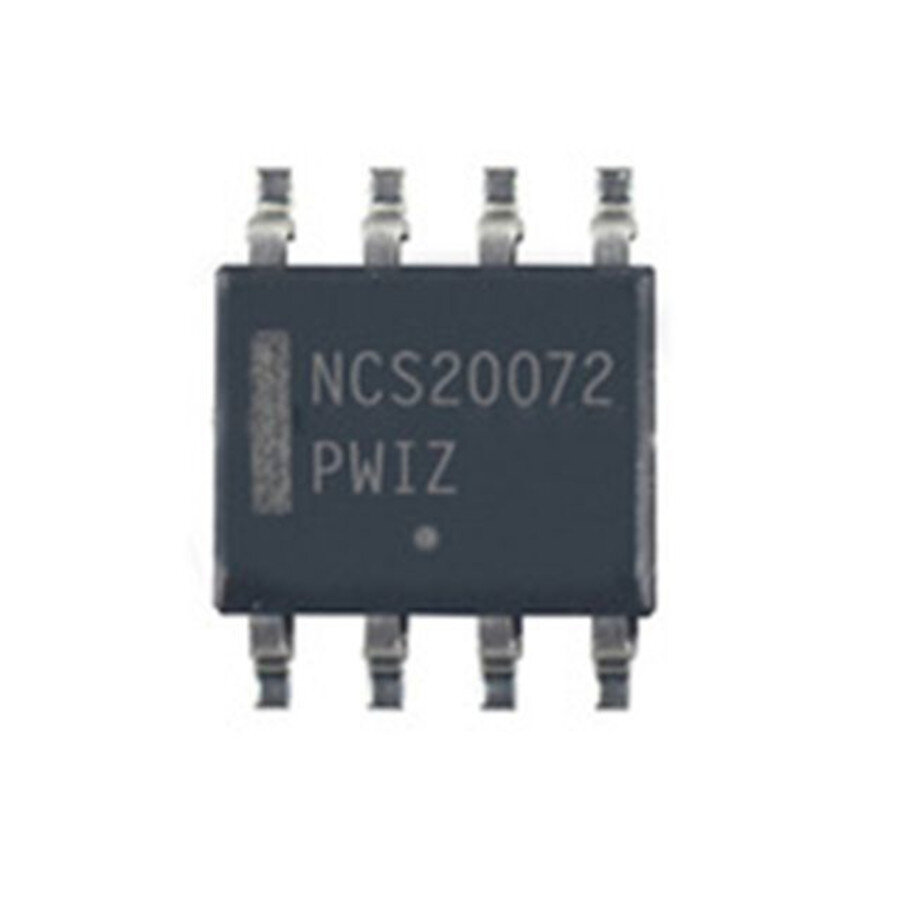

The NCS20072D is a dual-channel operational amplifier (op-amp) from ON Semiconductor, designed for applications requiring rail-to-rail output and a wide supply voltage range. It is part of the NCS2007x series, which includes single (NCS20071), dual (NCS20072), and quad (NCS20074) configurations.

Key Features:

• Rail-to-Rail Output: Allows the output voltage to swing close to the supply rails, maximizing the dynamic range.

• Wide Supply Voltage Range: Operates from 2.7 V to 36 V, accommodating various power supply configurations.

• Bandwidth: 3 MHz typical at a 2.7 V supply, suitable for a range of signal processing applications.

• Slew Rate: 2.8 V/µs typical at a 2.7 V supply, enabling rapid response to input changes.

• Low Supply Current: Consumes 405 µA per channel at a 2.7 V supply, making it energy-efficient.

• Low Input Bias Current: 5 pA typical, beneficial for high-impedance signal sources.

• Operating Temperature Range: -40°C to 125°C, suitable for industrial and automotive environments.

Applications:

• Current sensing

• Signal conditioning

• Automotive systems

• Notebook computers

• Portable instruments

• Power supplies
