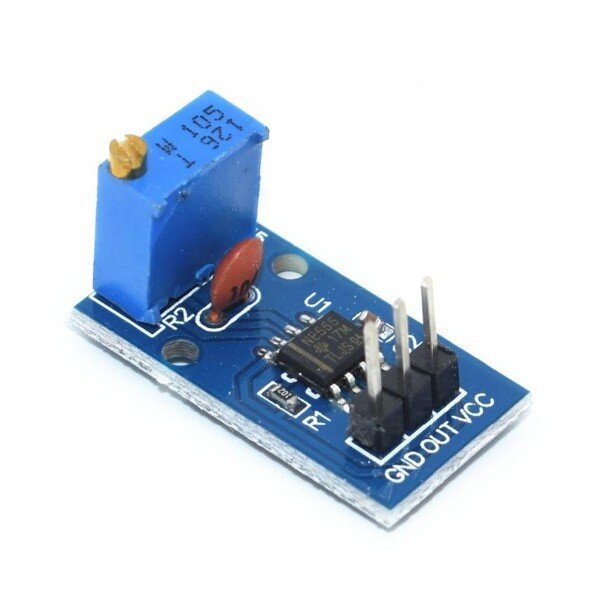

NE555 frequency adjustable pulse generator module for Arduino.

On-board chip NE555.
A single channel output, square wave pulse generator module based on the ubiquitous NE555 timer IC. The module can be powered from a wide power supply range (4.5 to 12V) and will produce a continuous square wave output between 15Hz to 24KHz which can be set by on on-board multi-turn potentiometer. Useful for applications where an approximate frequency clock source is required such as for stepper motor step generation tone generation etc.

Specifications:
PCB Color: Blue
Supply voltage: 4.5 to 12V
Supply current: 3mA at 5V Vcc
Min freq (approx): 15Hz 49% duty cycle at 5V Vcc
Max freq (approx): 24KHz 89.4% duty cycle at 5V Vcc
Output voltage: 4.5V at 5Vcc / 11.5V at 12Vcc
Size: 29 (mm) x12 (mm)

Package included:
1 X NE555 frequency adjustable pulse generator module
