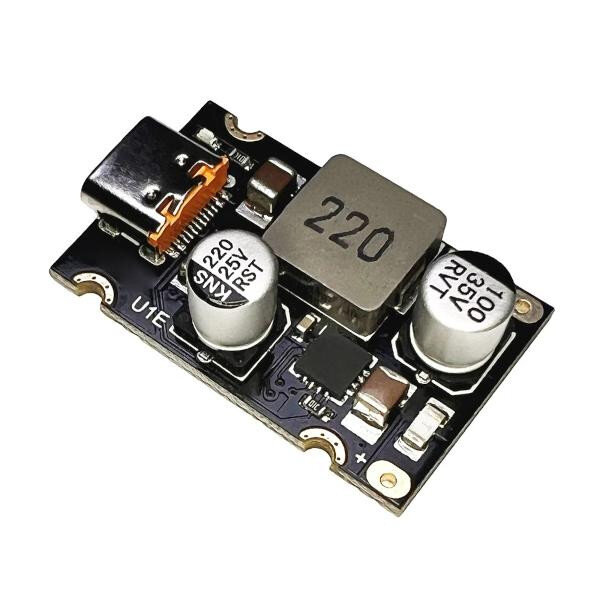

PD65W Fast Charging Module Type-C Interface.

Features:

Support PD3.1 (PPS), QC3.0, SCP

With protection function, input over-voltage and under-voltage protection, input over-current protection, output over-current short-circuit protection, over-temperature protection of the whole machine

Maximum output 20V 3.25A

Input 8~30V (only step-down)

DC models are divided into 5521 and 5525, 5521: outer diameter 5.5mm, inner diameter 2.1mm; 5525: outer diameter 5.5mm, inner diameter 2.5mm.

Product parameters:

Input voltage: DC 8~30V

Output voltage: Automatically adjust between 3.3V~21V when connected to a TYPE-C compatible power receiving device (the input voltage must be higher than the output voltage, if you want to trigger 20V fast charging, the input voltage must be higher than 20v)

Output power: maximum 65w (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)

Maximum output: 20V 3.25A

Conversion efficiency: 92%~97%

Output voltage ripple: <200mV

No-load current: <3mA

Input overvoltage and undervoltage protection

Input overcurrent protection

Output over-current short-circuit protection

Machine over-temperature protection

Supported charging protocols: PD3.1 (PPS), QC3.0, SCP

Product Size:

Standard model: 32×20×10mm (excluding the 1mm protruding C-mount female seat)

With DC seat: 44×20×10mm (excluding the 1mm protruding C-mount female seat)

Supported charging protocols:

BC1.2,

for Qualcomm QC2.0 and QC3.0

for Huawei Fast Charge Protocol FCP and SCP

for Samsung Fast Charge Protocol AFC

for MTK PE+1.1 and MTK PE+2.0

PD2.0/PD3.1(PPS) output protocol

Product application: all kinds of power supply transformation fast charge output

Instructions for use:

When using a 20~24V power adapter as the input, it is recommended to power on the power supply first before connecting to the module, otherwise there may be errors in the matching power of the module due to the slow power-on of the power supply, and the output of 65W cannot be achieved.

DC models are divided into 5521 and 5525.

5521: outer diameter 5.5mm, inner diameter 2.1mm; 5525: outer diameter 5.5mm, inner diameter 2.5mm.

The length of the DC model is 12mm longer than the standard model, which is 44mm. Both the Type-c socket and the DC socket protrude from the edge of the board by about 1mm. Model 5521 is also compatible with 5525 plugs with tuning fork shrapnel

Product temperature rise and output ripple:

Test conditions: the input voltage is 24V, the ambient temperature is 24°C, the load is a notebook computer that supports PD65W (the power is about 50%), and the computer runs a stress test to ensure that the power at the power supply end is 65w.
