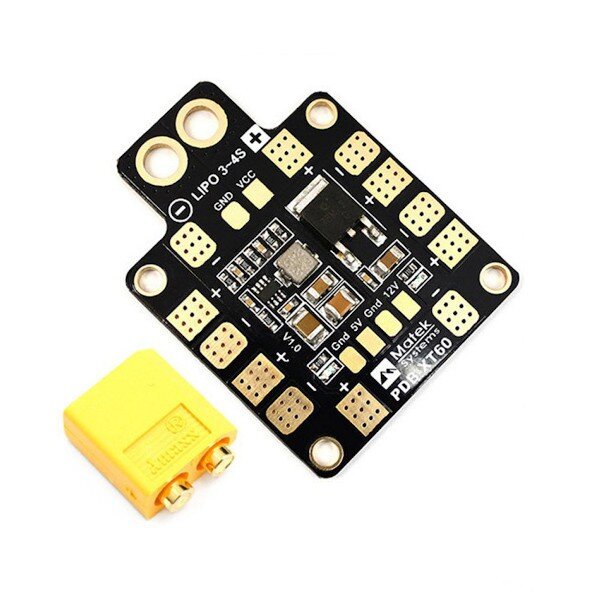

PDB-XT60 Power Distribution Board 5-12V for FPV Racing Quadcopter

Specifications:
General:
– Input voltage range (3S-4S operation): 9 – 18VDC
– Regulated 5V and 12V outputs
– LED power indicators ( 5V & 12V outputs )
– 4 ESC outputs

ESC outputs:
– Continuous current: 20A per output
– Peak current (10 seconds/minute): 25A per output

BEC 5V output:
– Designed for RC Receivers, Flight controllers, OSD, and Servos.

– DC/DC synchronous buck regulator, Efficiency is up to 95%.
– Voltage: 5.0 +/- 0.1VDC
– Continuous current: 3 Amps
– Short-circuit tolerant (10 seconds/minute) – LED (indicates voltage is in regulation)

BEC 12V output:
– The battery should be 4SLiPo
– Standard output designed to power cameras and video transmitters, etc.
– Voltage: 12.0 +/- 0.2VDC
– Continuous current: 2 Amps (Max.3A 10s/minute)
– Short-circuit tolerant (10 seconds/minute)
– LED (indicates voltage is in regulation)

About the FPV Sponge Mat Landing Skid Pad Gear:
1. Super light, strengthened shockproof,anti-static.
2 . Great for mini quads from 180mm to 300mm in size, great replacement pads for quadcopters like QAV210 QAV250 QAV-R 180 220 260
