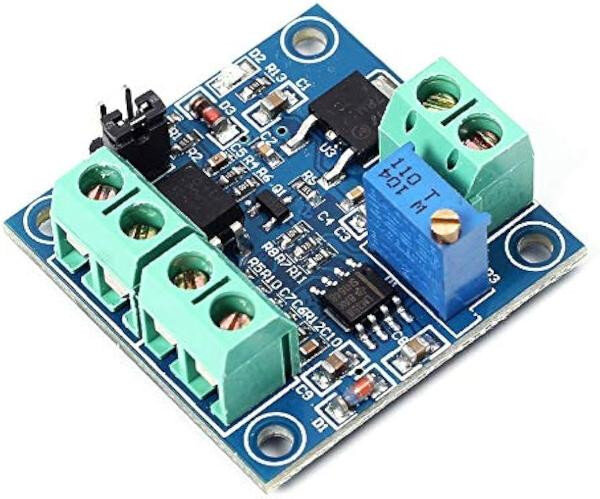

The module can convert PWM digital signals into 0 to10V analog signals. The output voltage can be adjusted by varying the duty ratio of the PWM signal.

Key Parameters:

• Working Voltage: DC 12V to 30V (>100mA)
• PWM Signal Frequency: 1kHz to 3kHz
• PWM Signal Input Voltage: 5V (for Microcontroller) or 24V (for PLC)
• Conversion Range: 0-100% PWM to 0-10V
• Allowable Error: 5%

Hardware Interface:

• VCC: DC 12V to 30V Input
• GND: Ground/0V
• PWM: PWM Signal Input (0-100%)
• GND: PWM Ground
• VOUT: Voltage Output (0-10V)
• GND: VOUT Ground
