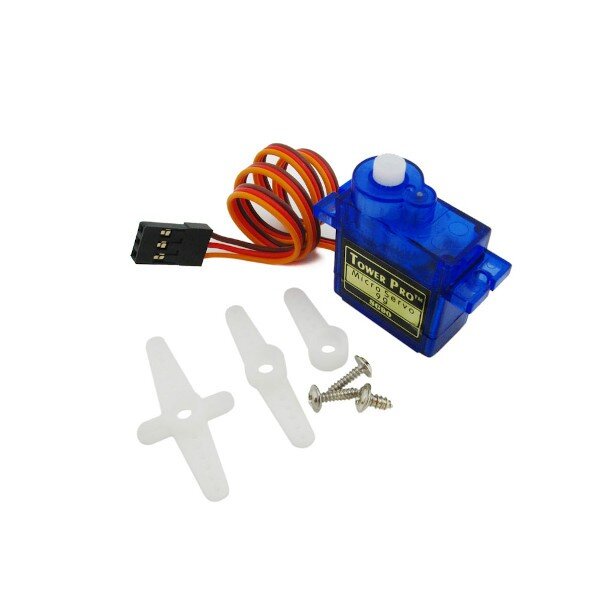

SG90 Micro Servo Motor
(0
reviews)
Inhouse product
Price
৳130.00 - ৳150.00
/1
Share
Top Selling Products
-
৳320.00
Reviews & Ratings
0.00
out of 5.0
(0
reviews)
There have been no reviews for this product yet.
The Servo Motor Micro SG90 work well for basic servo experimentation and can be used in applications where small size is a virtue and that don’t require a huge amount of torque, but they are still pretty strong. Gears are nylon which is the case with most lower cost Servos.
| Motor Model | Generic SG90 (China) | |
| Drive Type | Analog | |
| Degree Rotation | 180° (±15°) 360° | |
| Operating Ratings | ||
| Voltage | 4.8-6VDC (5V Typical) | |
| Current (idle) | 10mA (typical) | |
| Current (typical during movement) | 100-250mA | |
| Current (stall) | 360mA (measured) | |
| Stall Torque | 1.7 kg-cm (measured) | |
| Speed | 0.12s / 60 degree (varies with VDC) | |
| Dimensions | ||
| Cable Length | 24cm (9.5″) | |
| Motor Housing L x W x H | 23 x 12 x 26mm (0.9 x0 .5 x 1″) | |
| Motor Height (w/ shaft) | 32mm (1.26″) | |
| Motor Housing Width with Mounting Ears | 32mm (1.26″) |
