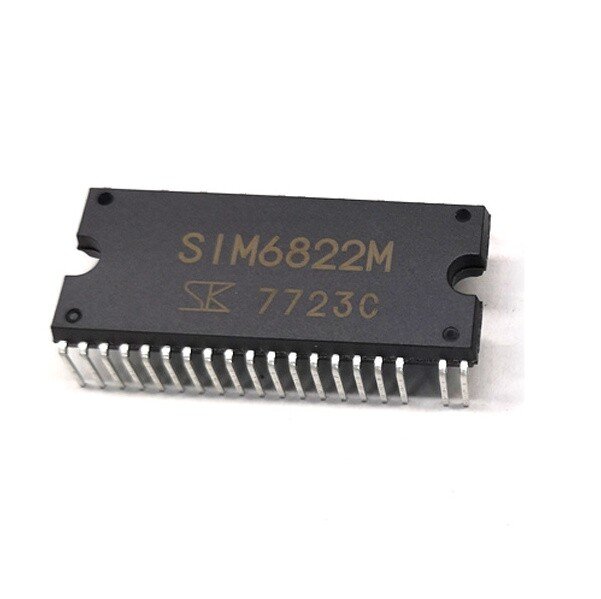

The SIM6800M series are high voltage 3-phase motor drivers in which transistors, a pre-drive circuit, and bootstrap circuits (diodes and resistors) are highly integrated.
These products can run on a 3-shunt current detection system and optimally control the inverter systems of low- to medium-capacity motors that require universal input standards.

Features

●Built-in Bootstrap Diodes with Current Limiting Resistors
    (60 Ω)
●CMOS-compatible Input (3.3 V or 5 V)
●Bare Lead Frame: Pb-free (RoHS compliant)
●Isolation Voltage: 1500 V (for 1 min)
 UL-recognized Component (File No.: E118037)
●Fault Signal Output at Protection Activation (FO Pin)
●High-side Shutdown Signal Input (SD Pin)
●Protections Include:
   Overcurrent Limit (OCL): Auto-restart
   Overcurrent Protection (OCP): Auto-restart
   Undervoltage Lockout for Power Supply
   High-side (UVLO_VB): Auto-restart
   Low-side (UVLO_VCC): Auto-restart
   Thermal Shutdown (TSD): Auto-restart

Application

For motor drives such as:
●Refrigerator Compressor Motor
●Fan Motor and Pump Motor for Washer and Dryer
●Fan Motor for Air Conditioner, Air Purifier, and Electric Fan




Specifications

Type	Power IC
Breakdown Voltage	600 V
Output Current	5.0 A
RDS(ON) max./ VCE(SAT) typ.	1.75V
Output Element	IGBT
Input Threshold	3.3/5.0 V
UVLO	YES
Overcurrent (OCP or OCL)	OCP/OCL
Temperature Detection	Thermal Shutdown
Fault Signal Output	YES
3 Shunt Support	YES
Bootstrap Diode	Built-in
Simultaneous On-state Protection	NO
Reg Output	NO
