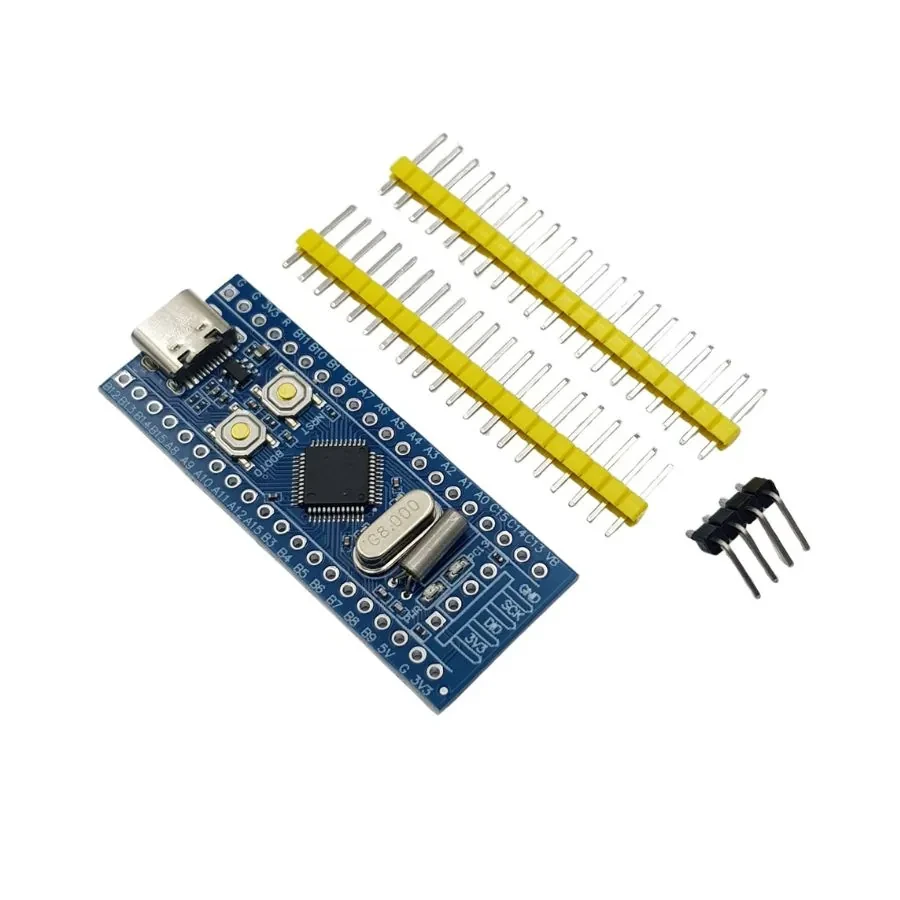

STM32F103C8T6 Type-C ARM Development Board

STM32F103C8T6 type-c as a development module based on the STM32F106C8T6 circuit, it is the most basic MCU-based motherboard suitable for academic research, DIY projects.

Has SWD simulation debugging download interface, simple and convenient, fast debugging speed

Using type C jack, can be used for communication and power supply, compatible with regular android charging interfaces

Note:

• This module is developed based on the STM32 circuit rather than the STM32 board so it will not be fully compatible, however, you can use ST-LINK V2 to load code normally with the arduino compiler.
• With a dual row of pins, which are not pre-welded by default, users can choose the welding direction appropriate to their application situation

Specifications

• Microcontroller: CH32F103C8T6
• Operating voltage: 3.3VDC
• Voltage applied through type C port: 5VDC
• There is built-in 8Mhz quartz.
• Full footing of all GPIOs
• Communication standards: SPI, SPI2, 2C1, I2C2, UART1, UAR2, UART3, USB2.0
• There is Led power status.
• There are PC13 leds.
• There is a Reset button.
• Weight: 7.2g
