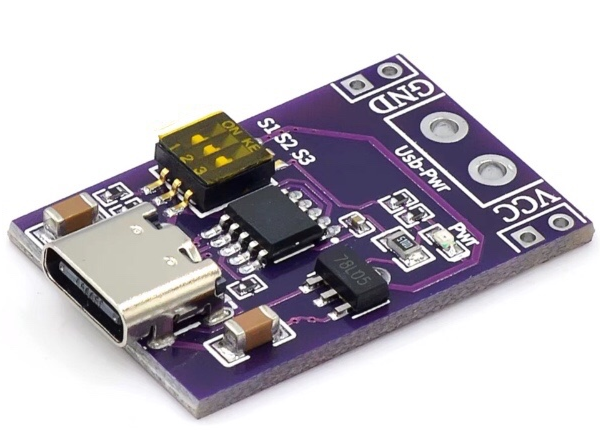

Type-C QC AFC PD2.0 PD3.0 to DC Spoof Scam Fast Charge Trigger Polling Detector USB-PD Notebook Power Supply Change Board Module.

Specifications:

• Fast charge support protocol: PD2.0/PD3.0, QC2.0/QC3.0, AFC
• Support voltage: 5V, 9V, 12V, 15V, 20V (voltage step is not supported)

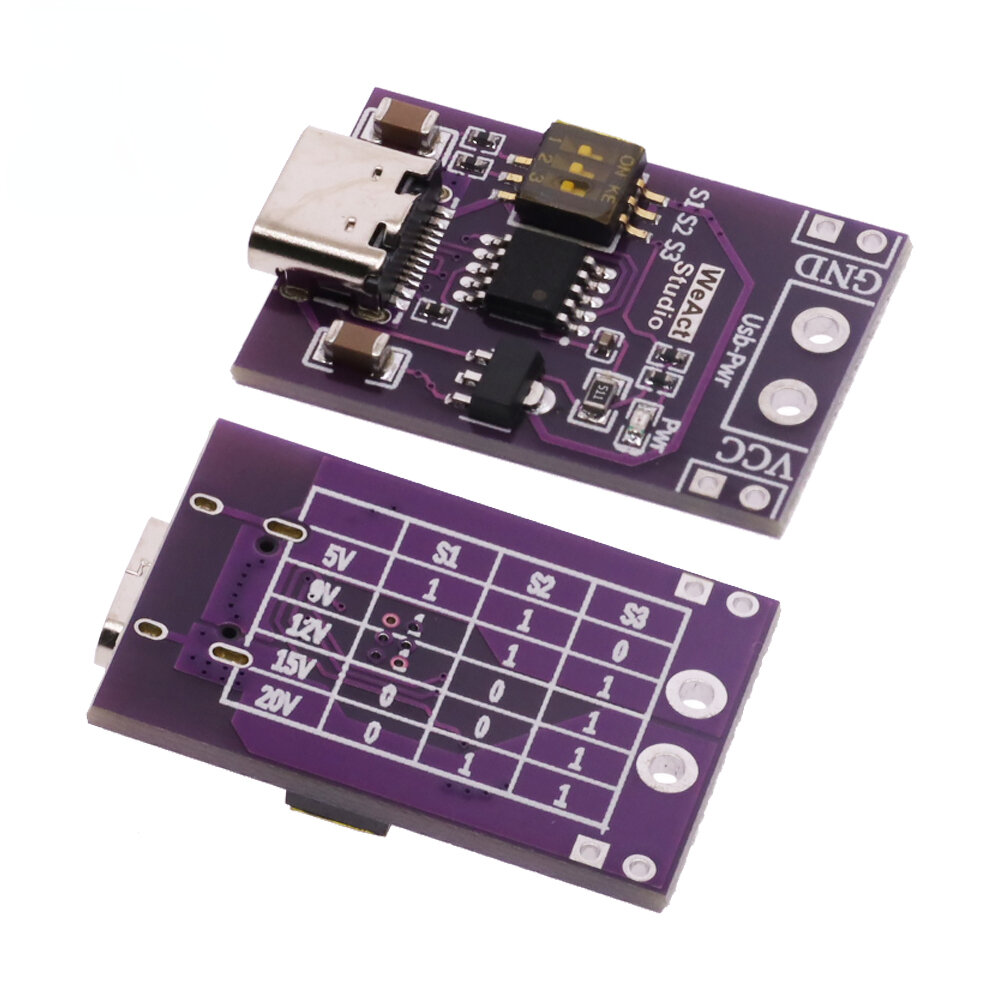

• Voltage adjustment method: According to the table on the back of the board, adjust the DIP switch to control the voltage output
• Size: 3.1*2*cm
• Net weight: 3.5g



How to use:

• After adjusting the DIP switch, because there is no voltage indicator, it is recommended to use a multimeter to measure the voltage before connecting to the application circuit.
• If the DIP switch is not adjusted according to the table, the module will output any one of the above voltages.
