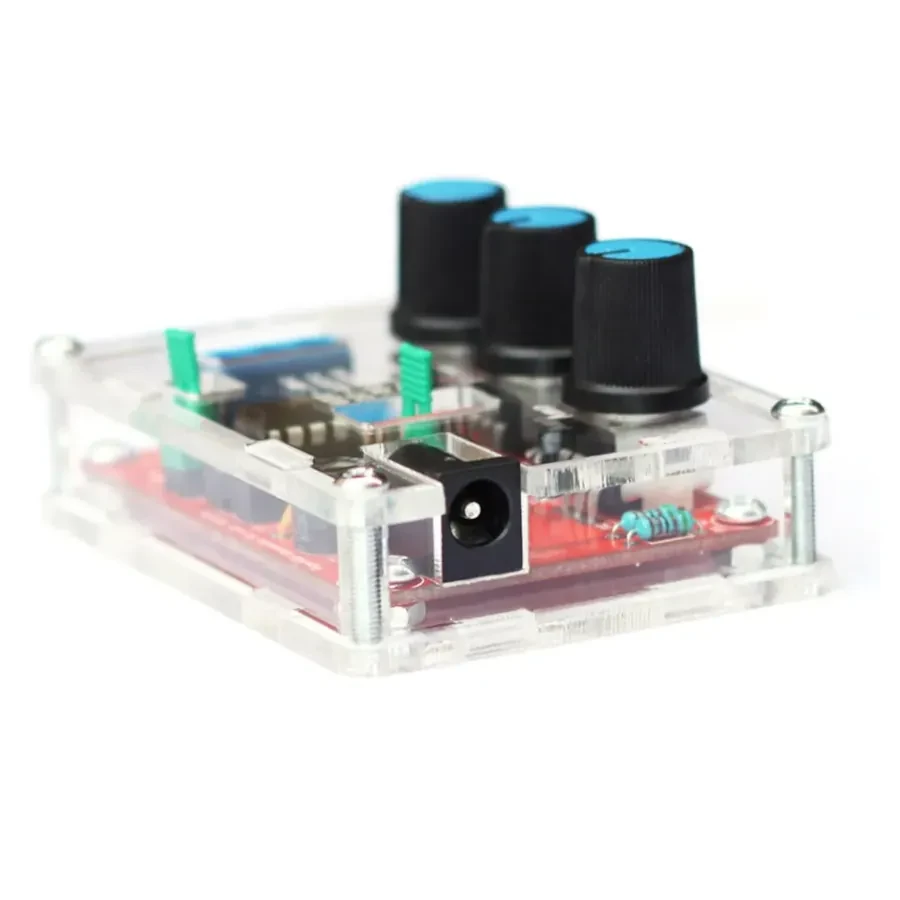

XR2206 High Precision Function Signal Generator With Shell

Specification:-

1. Voltage Supply: 9-12V DC Input
2. Waveforms: Square, Sine & Triangle
3. Impedance: 600 Ohm + 10%
4. Frequency: 1Hz-1MHz
5. Sine Wave
6. Amplitude: 0-3V at 9V DC Input
7. Distortion: Less than 1% (at 1KHz)
8. Flatness: +0.05dB 1Hz – 100kHz

Square Wave



1. Amplitude: 8V (no load) at 9V DC Input
2. Rise Time: Less than 50ns (at 1KHz)
3. Fall Time: Less than 30ns (at 1KHz)
4. Symmetry: Less than 5% (at 1KHz)



Triangle Wave



1. Amplitude: 0-3V at 9V DC Input
2. Linearity: Less than 1% (up to 100KHz) 10mA

 Note:

Please allow minor error due to manual measurement. The colors may be a little difference for the different monitor display
