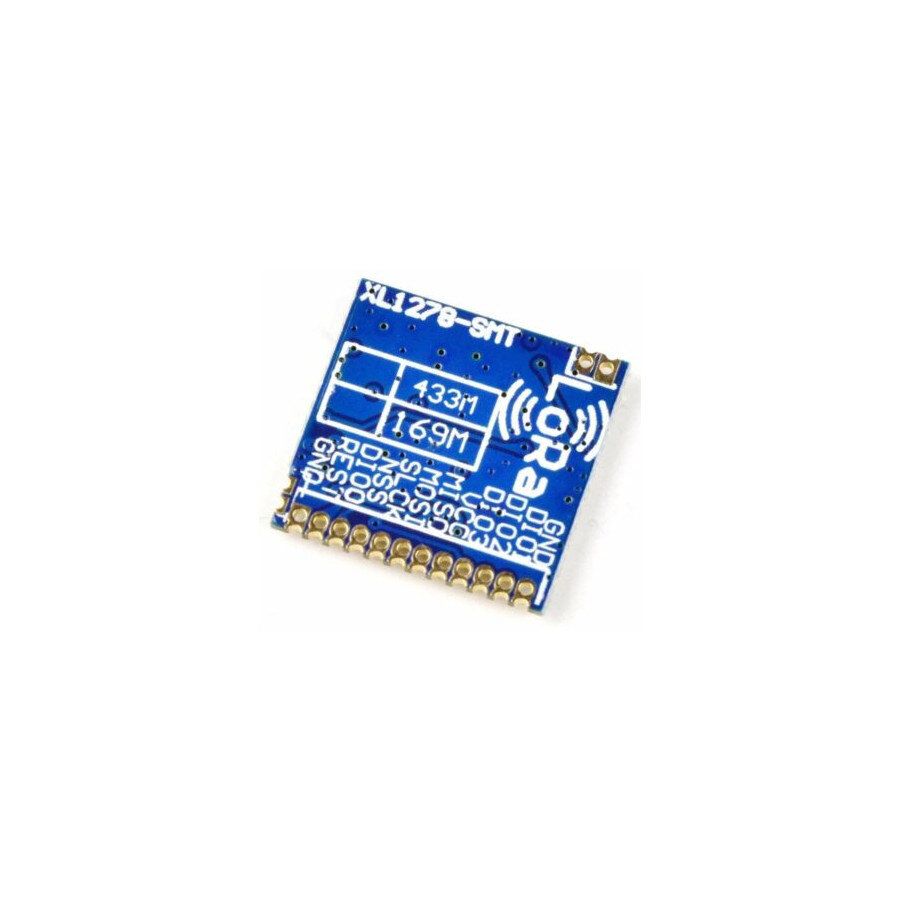

The 433MHz SX1278 LoRa module is a long-range, low-power wireless communication device commonly used in Internet of Things (IoT) applications. Based on Semtech's LoRa (Long Range) technology, this module provides excellent sensitivity and long-range capabilities, making it suitable for various low-power wide-area network (LPWAN) applications.

Key Features:

1. Frequency Band: Operates at 433MHz (or other ISM bands depending on the module configuration).
2. LoRa Technology: Provides robust communication over long distances, even in environments with interference or obstructions.
3. Low Power Consumption: Suitable for battery-powered devices.
4. Data Rates: Supports data rates from 0.3 kbps to 37.5 kbps.
5. Range: Up to 10-15 km in ideal open field conditions (actual range depends on the environment, antenna quality, and power settings).
6. Interfaces: Typically SPI for communication with a host microcontroller.
7. Modulation: Uses advanced spread spectrum modulation techniques.
8. High Sensitivity: Typically around -137 dBm.
9. Output Power: Configurable up to 20 dBm (100mW).

Applications:

• Remote monitoring and control
• Smart metering
• IoT devices and sensor networks
• Industrial automation
• Home automation systems
• GPS tracking systems
• Environmental monitoring

Typical Connections:

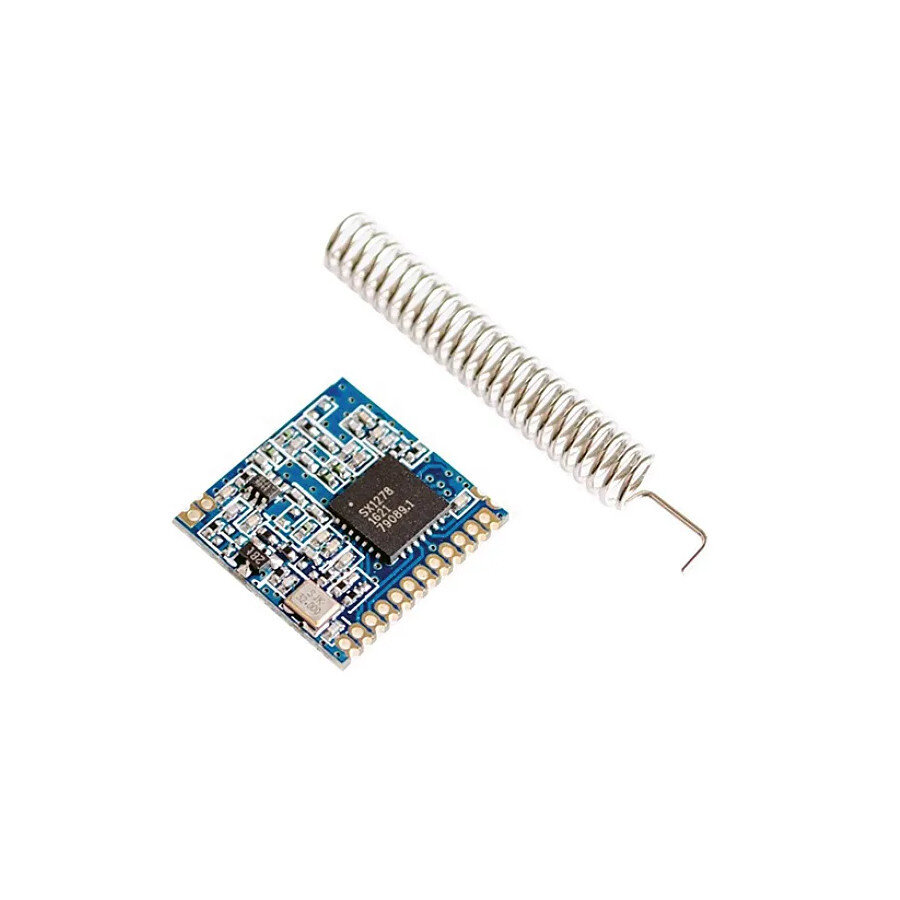

The SX1278 module is usually interfaced with a microcontroller (e.g., Arduino, Raspberry Pi) through an SPI interface. It also requires an external antenna tuned for the 433MHz frequency band.
