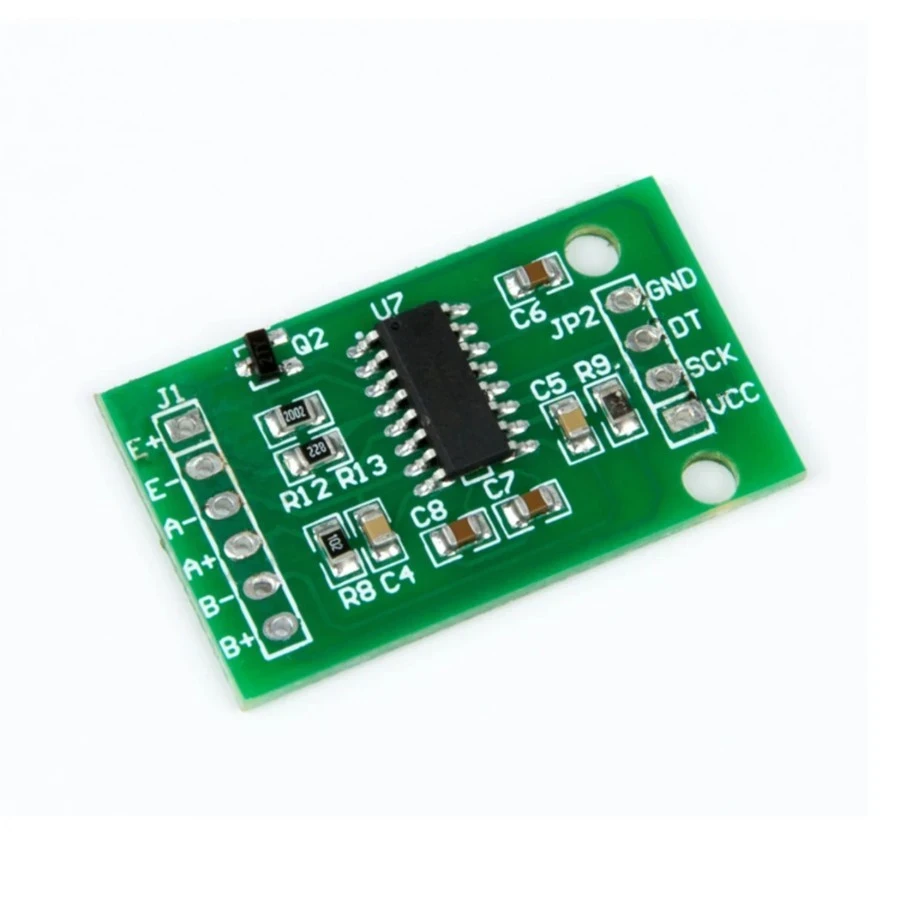

The HX711 Load Cell Amplifier Module is a high-precision 24-bit analog-to-digital converter (ADC) designed for accurate weight and force measurement applications. It is widely used in digital weighing scales, electronic balances, IoT projects, and Arduino-based measurement systems.

This module is specifically optimized for load cells and strain gauge sensors, providing stable, low-noise readings even for small weight changes. With its simple two-wire digital interface, the HX711 easily connects to Arduino, ESP32, ESP8266, Raspberry Pi, and other microcontrollers.

Ideal for students, engineers, and DIY electronics enthusiasts in Bangladesh, the HX711 module offers excellent accuracy, low power consumption, and reliable performance at an affordable price.

Whether you're building a digital weighing scale, smart weight monitoring system, or industrial measurement project, the HX711 Load Cell Amplifier Module is a proven and trusted solution.

Product Specifications:

• Model: HX711

• Type: Load Cell Amplifier / ADC Module

• ADC Resolution: 24-bit

• Input Type: Differential (Load Cell / Strain Gauge)

• Operating Voltage: 2.6V – 5.5V

• Current Consumption: < 1.5mA (Normal operation)

• Data Interface: Two-wire digital interface (DT, SCK)

• Selectable Gain: 32, 64, 128

• Sampling Rate: 10Hz or 80Hz

• Compatible With: Arduino, ESP32, ESP8266, Raspberry Pi

• Applications: Digital weighing scales, force measurement, IoT projects

• Country Availability: Bangladesh

Key Features:

• High-accuracy 24-bit ADC

• Designed specifically for load cells & strain gauges

• Low noise and high stability

• Easy integration with microcontrollers

• Low power consumption

• Ideal for DIY, academic, and industrial use
