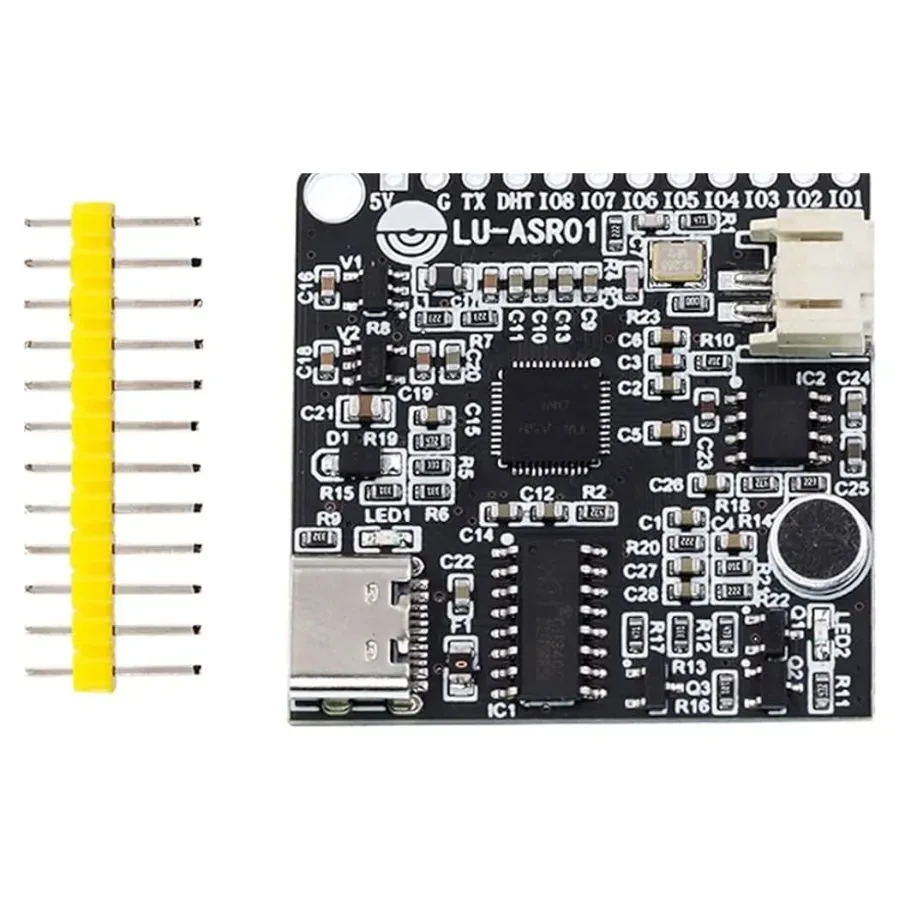

the LU-ASR01 Intelligent Voice Recognition Module.

The LU-ASR01 is a compact, offline voice recognition module designed for embedded applications. It allows developers to add voice control capabilities to their projects without needing a constant internet connection or a powerful central processor.

1. Overview and Key Features:

The LU-ASR01 is built around a dedicated voice recognition chip (often similar to the ICRoute LD3320). Its primary function is to listen for pre-programmed "trigger words" or commands and then output a corresponding signal (like a serial string or a high/low on a GPIO pin) that a main microcontroller (like an Arduino, STM32, or ESP8266/32) can read and act upon.

Key Features:

• Offline Operation: Works without Wi-Fi, Bluetooth, or an internet connection. All processing is done locally on the module.

• Fixed Command Set: You must pre-program a specific list of words or phrases it can recognize (typically 50-80 commands). It does not understand free-form speech.

• High Recognition Accuracy: For its intended purpose (clearly spoken, pre-defined commands), it boasts a very high accuracy rate, often above 95%.

• Simple Interface: Communicates via UART (Serial) or controls outputs directly via GPIO pins.

• Built-in Microphone: Has an onboard MEMS microphone for easy integration.

• Low Cost: Very affordable, making it popular for hobbyists and consumer products.

• Easy to Program: Commands are added by simply sending a list of strings over serial; no complex acoustic model training is required.

2. Technical Specifications:

3. How It Works: The Basics:

1. Programming: You first send the list of commands you want it to recognize to the module via its serial port. For example: 1=Turn on the light, 2=Turn off the light, 3=Play music, 4=Stop.

2. Listening: The module enters its listening mode. Its internal DSP constantly processes audio from the microphone.

3. Processing: When it detects speech, it compares the audio pattern against its pre-loaded list of commands.

4. Output:

   • Serial Mode: It outputs a string (e.g., #1:Turn on the light) or a simple number (e.g., 01) over the TX pin when a match is found.

   • GPIO Mode: It can be configured to set a specific pin high or low to directly trigger a relay, LED, etc.

4. Pinout (Typical Configuration)

A standard LU-ASR01 module has a pin header with the following pins:

⚠️ Critical Warning: The module operates at 3.3V logic levels. If you are connecting it to a 5V Arduino (like an Uno), you MUST use a logic level converter on the UART lines (RXD/TXD) to avoid damaging the module. Better yet, use a 3.3V MCU like an ESP32.

5. Applications:

The LU-ASR01 is perfect for any project requiring hands-free control with a limited set of commands:

• Smart Home Control: Voice-activated lights, fans, and outlets.

• Voice-Activated Robots: "Move forward", "Turn left", "Stop".

• Interactive Toys: Trigger sounds or actions with specific words.

• Industrial Control: Simple and safe voice commands for machinery operation (in low-noise environments).

• Accessibility Projects: Create devices that can be controlled by people with limited mobility.

6. Advantages and Limitations:

• Advantages:

  • Completely offline and private.

  • Very fast response time.

  • Extremely easy to set up and integrate.

  • Low power consumption.

  • Inexpensive.

• Limitations:

  • Not for natural language: It only recognizes the exact phrases you program. It doesn't "understand" speech.

  • Fixed command set: You are limited to ~50-80 commands and cannot add new ones on the fly without reprogramming.

  • Acoustic Sensitivity: Performance can degrade in noisy environments or with heavy accents. Speaker-dependent to some degree.

  • 3.3V Only: Requires careful voltage level management.

Conclusion

The LU-ASR01 is an excellent, low-barrier-to-entry solution for adding basic but robust voice control to electronics projects. If your project needs to respond to a specific set of spoken commands without relying on the cloud, this module is a perfect choice. Just remember its limitations regarding command flexibility and always ensure you use 3.3V logic levels.
