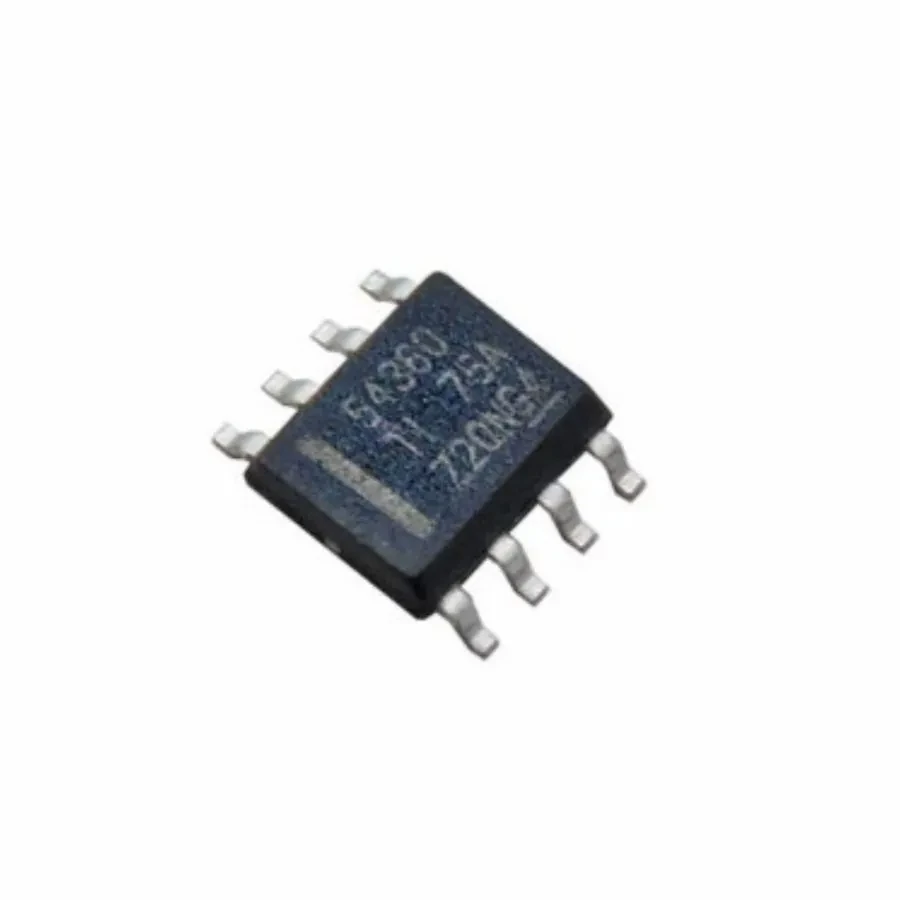

The TPS54360 is a 60V, 3.5A step-down (buck) DC-DC converter with an integrated high-side MOSFET, packaged in an 8-pin SOIC (Small Outline Integrated Circuit) with PowerPAD™ for enhanced thermal performance. Below is a detailed overview based on available information:

Key Specifications:

• Input Voltage Range: 4.5V to 60V
• Output Voltage: Adjustable from 0.8V to 58.8V
• Output Current: Up to 3.5A
• Switching Frequency: Adjustable from 100 kHz to 2.5 MHz
• Efficiency: Optimized with Eco-mode™ for light load efficiency, reducing no-load supply current to 146 µA
• Package: 8-pin SOIC (DDA) with PowerPAD™
• Features:
  • Current mode control for simple external compensation
  • Low ripple pulse-skip mode for reduced power consumption
  • Shutdown supply current: 2 µA when enable pin is low
  • Undervoltage lockout (UVLO): Internally set at 4.3V, adjustable via enable pin
  • Internal soft-start to reduce inrush current and eliminate overshoot
  • Frequency foldback and thermal shutdown for protection
  • Survives load dump pulses up to 65V per ISO 7637
• Operating Temperature: -40°C to 150°C (junction temperature)

Applications:

• Industrial power supplies
• Automotive systems (e.g., infotainment, clusters)
• Telecom and networking equipment
• Battery-powered systems requiring high input voltage tolerance.
